Machine Tool and Accessories

Our industrial machine tool mainly includes gantry CNC drilling-milling machine, gantry drilling-milling machine, floor type face milling machine, multifunction face milling machine, single-arm milling machine, etc.

The machining tools are made of HT250 or HT300. Our company applies new technology, scientific management, and advanced casting technology for manufacturing large casting parts. The advanced processing technologies include resin sand casting, artificial tempering, foam molding, natural or electric shock aging. Those technologies allow us to produce the high-quality machine tool and accessories.

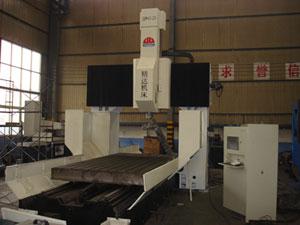

    2. Gantry CNC Drilling-Milling Machine The gantry CNC drilling-milling machine is widely used for the drilling and milling of the tube or plate type parts.
      The drilling-milling machine mainly includes machine tool body, workbench, gantry, slide carriage, power head, cooling system, chip removal system, numerical control system, and so forth.
      Both gantry and machine tool body are welded parts. The workbench is made of iron casting.

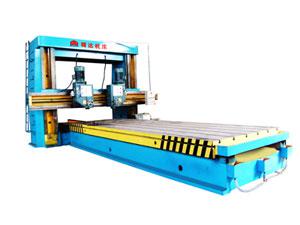

    2. Gantry Drilling-Milling MachineThe gantry drilling-milling machine applies the switched reluctance motor. Its running of working surface can achieve the stepless speed regulation. The wide speed adjustable range enables this product to meet all kinds of planing or milling. Our machining equipment can process any material made horizontal, vertical, or inclined plane. Also, it can process the rack, T slot, arc groove, and so on.
      Treated with the advanced VHF hardening process

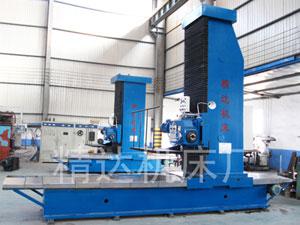

    2. Floor Type Face Milling MachineModel:JD-DX15-08
      Machine Tool Bed (mm):3200×1000×500
      Column(mm):600×700×1900
      Longitudinal Travel of Work Piece(mm):1500
      Vertical Travel of Column(mm):800
      Longitudinal Travel Speed(mm):50-500

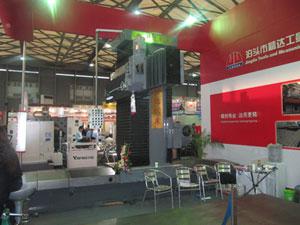

    2. Multifunction Face Milling MachineThe multifunction face milling machine is secure in structure, and has good rigidity, flexibility.
      Our large size milling equipment is used to the groove type milling for the large or ultra large workpiece.
      This machine tool also can be used to the drilling and tapping of the large or ultra large workpiece.

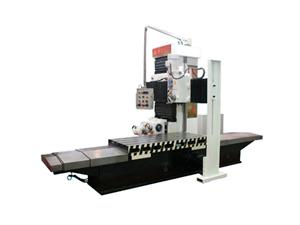

    2. Single-arm Milling MachineDBX30-15F single-arm milling machine is stable in performance, flexible and convenient in operation. It is added with an auxiliary column, which helps significantly enhance the overall rigidity. This product has a vertical milling head which can move toward right or left 30 degrees. Based on the user's requirement, it can be available with right-angle milling head or universal milling head. Therefore, this horizontal milling equipment has a wide application range.

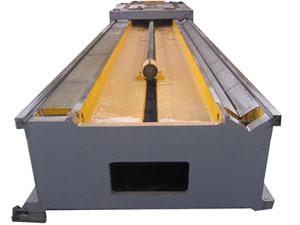

    2. Customized Machine Tool PartsUpon request, we can customize the machine tool parts including castings, such as bed piece and columns for CNC machining tools. HT250~300 cast iron will be used as the raw materials.
