3D Welding Table

3D Welding Table

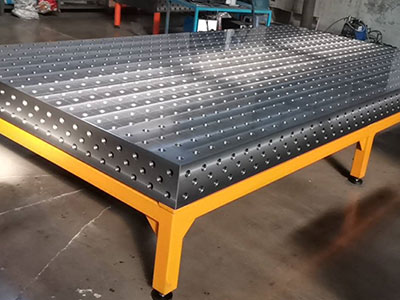

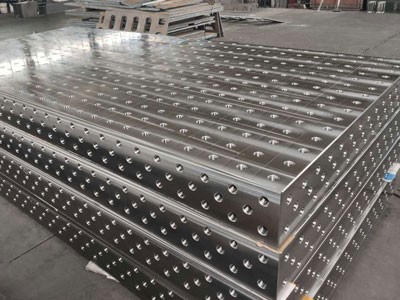

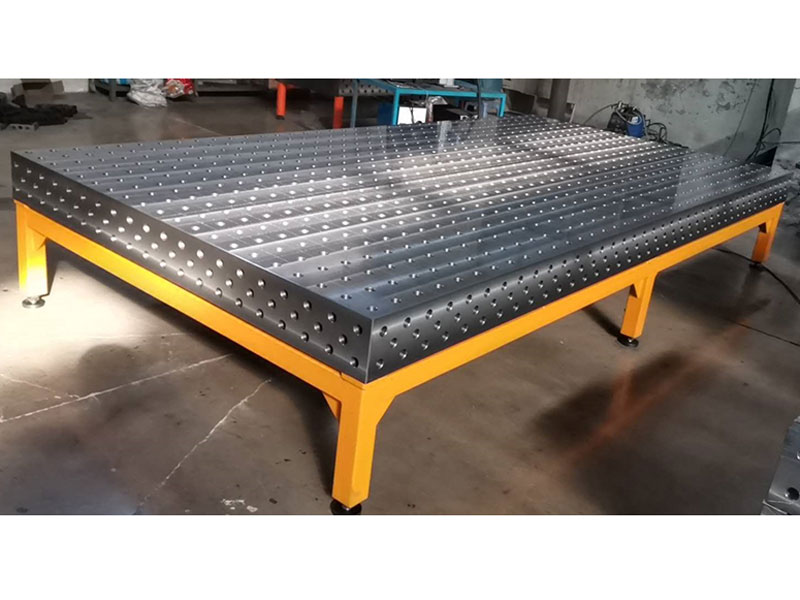

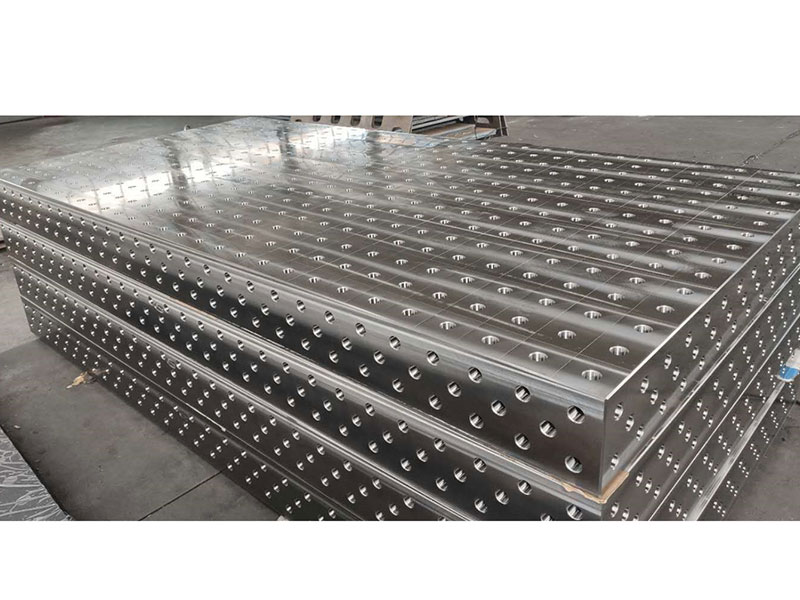

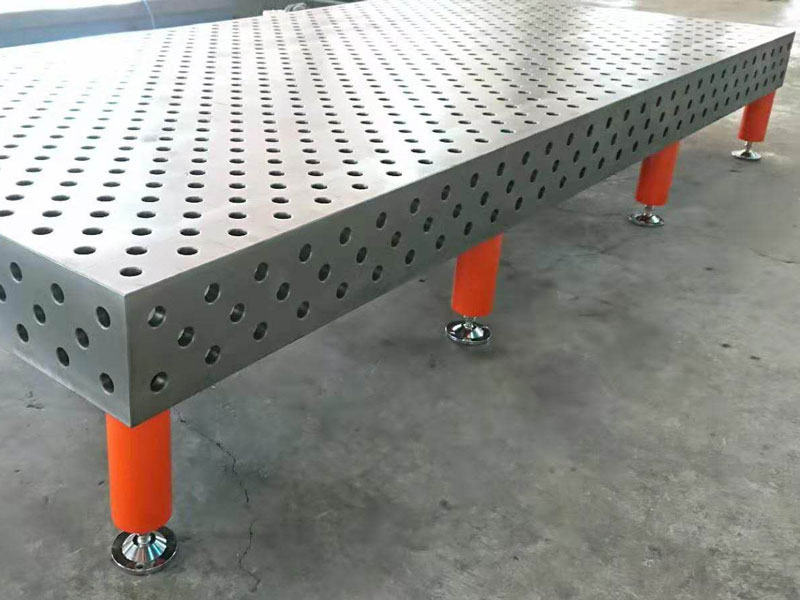

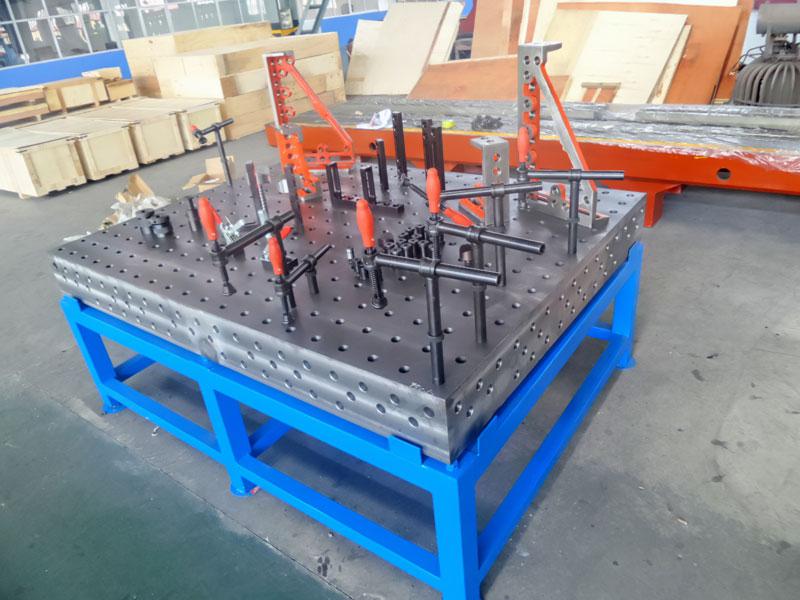

The 3D flexible welding table is entirely cast from HT250 materials. Its perforated grille is designed with different bore diameters: 28mm and 16mm. This product can be installed with modules and clamps, providing the advantages of convenient disassembly, various splicing, increased production efficiency and so on. It is applicable to diversified industries, including bikes, motorcycles, automobile, engineering machinery, structural steel, sheet metal fabrication and welding industry etc.

Parameters (φ28 Series)

No.	Product	Photo	Size (mm)	Net weight (Kg)
1	3D steel welding table		1000x1000x200	322.00
2			1200x1200x200	430.00
3			1500x1000x200	483.00
4			1500x1500x200	676.00
5			2000x1000x200	598.00
6			2400x1200x200	816.00
7			2000x1500x200
8			3000x1500x200	1285.00
9			3000x2000x200
10			4000x2000x200	2154.00
11			2000x2000x200	1169.30
12			1200x1000x200	373.30
13	3D cast iron welding table		1000x1000x200	300.00
14			1200x1200x200	472.00
15			1500x1000x200	525.00
16			1500x1500x200	768.00
17			2000x1000x200	636.00
18			2400x1200x200	914.00
19			2000x1500x200
20			3000x1500x200	1452.00
21			3000x2000x200
22			4000x2000x200	2369.40
23			2000x2000x200
24			1200x1000x200
25	Standard supporting leg		φ89x200	6.60
26			φ89x350	7.20
27			φ89x450	9.90
28			φ89x620	10.80
29	Universal wheel supporting leg		φ89x200	8.10
30			φ89x350	10.00
31			φ89x450	11.40
32			φ89x620	13.60
33	U-Shaped Square Block (Steel)		500x200x200	54.00
34			1000x200x200	101.00
35			1200x200x200	122.00
36			1500x200x200	151.00
37			2000x200x200	197.00
38			2400x200x200	233.00
39			3000x200x200	300.00
40	U-shaped Square Block (Cast iron)		500x200x200	54.00
41			1000x200x200	101.00
42			1200x200x200	128.00
43			1500x200x200	156.00
44			2000x200x200	206.00
45			2400x200x200	244.00
46			3000x200x200	303.00
47	L-shaped square block (Steel)		500x200x100	27.00
48			1000x200x100	50.00
49			1200x200x100	59.00
50			1500x200x100	76.00
51			2000x200x100	97.80
52	L-shaped square block (Cast iron)		500x200x100	27.60
53			1000x200x100	50.30
54			1200x200x100	59.20
55			1500x200x100	74.00
56			2000x200x100	97.80
57	Angle support - cast iron (Left)		300x275x100(L)	13.00
58	Angle support - cast iron (Right)		300x275x100(R)	13.00
59	Angle support - cast iron (Left)		600x375x100(L)	23.00
60	Angle support - cast iron (Right)		600x375x100(R)	23.00
61	Angle support - cast iron (Left)		800x375x100(L)	29.00
62	Angle support - cast iron (Right)		800x375x100(R)	29.00
63	Angle shaped supporting block		200x200x175	17.00
64	Angle device		500x100x100	26.00
65	Positioning angle		75x50x75	9.7
66			175x50x75	10
67			175x50x175（hole/hole）	2.50
68			175x50x175（slot/slot）	1.82
69			175x50x175（hole/slot）	2.20
70			275x50x175	3.00
71	Positioning leveling ruler		100x50x25	0.80
72			150x50x25	0.80
73			225x50x25	1.30
74			300x50x25	2.00
75			500x75x25	5.80
76			800x75x25	9.00
77			1000x100x25	12.00
78	Flat surface angle		175x175x25	2.00
79	Flat surface angle		275x225x25	3.00
80	Flat surface angle		325x225x25	3.50
81	Flat surface angle		500x375x25	12.00
82	T-shaped angle		250x150x25	2.50
83	T-shaped angle		250x200x25	2.80
84	V-shaped positioning part -φ58x90°		φ58x50(H)-90°	0.55
85	V-shaped positioning part-φ58x120°		φ58x50(H)-120°	0.58
86	V-shaped positioning part-φ58x140°		φ58x50(H)-140°	0.66
87	Adjustable V-shaped positioning part 120°		φ110x120(H)-120°	3.00
88	Adjustable V-shaped positioning part 140°		φ140x120(H)-140°	5.00
89	Eccentricity positioning plate 75		50xφ75x25	0.45
90	Eccentricity positioning plate 100		75xφ100x25	1.50
91	Height regulator		φ80-75x100	2.50
92	Round adjustable pad		0.5mm、1mm、2mm、3mm、4mm、5mm、10mm、20mm、30mm、40mm+axis、L125mm（75mm）	2.50
93	Square adjustable pad		0.5mm、1mm、1.5mm、2mm、2.5mm、3mm、4mm、5mm	0.50
94	Rectangular adjustable pad		0.5mm、1mm、1.5mm、2mm、2.5mm、3mm、4mm、5mm	1.00
95	180° screw compactor		300x300	2.50
96	90° screw compactor		300x150	1.80
97	45° screw compactor		300x300	2.50
98	Round plate vertical quick clamp		TT-12132	0.80
99	Round plate push-pull quick clamp		TT-304-EM	0.80
100	Round plate horizontal quick clamp		TT-203-FL	0.80
101	Square plate vertical quick clamp		TT-12265	1.30
102	Square plate push-pull quick clamp		TT-304-EM	1.30
103	Square plate horizontal quick clamp		TT-200-WL	1.30
104	Quick locking pin（50）		φ28X50	0.55
105	Quick locking pin（75）		φ28x75	0.70
106	Countersunk quick locking pin（50）		φ28X50	0.60
107	Hand shank locking pin（50）		φ28X50	0.65
108	Countersunk locking pin(50）		φ28x50	0.20
109	Countersunk locking pin（75）		φ28x75	0.25
110	Hexagon connection locking pin（50）		φ28x50	0.30
111	Magnetic Pin（25）		φ28x25	0.30
112	Magnetic pin（50）		φ28x50	0.35
113	Clamp tube 300		φ28x300	0.80
114	Clamp tube 600		φ28x600	1.40
115	Two-point clamping bridge		170x35x20	0.60
116	Three-point clamping bridge		170x35x20	1.02
117	90° clamping corner sleeve		φ28-90°	0.30
118	45° clamping corner sleeve		φ28-45°	0.30
119	Horizontal clamping corner sleeve		φ28-180°	0.25
120	Vertical clamping corner sleeve		φ28-90°	0.25
121	Accessories cart		1000x600x1065	58.00
122	Lifting ring		φ28	40.00
123	Ground connector		φ28	41.00
