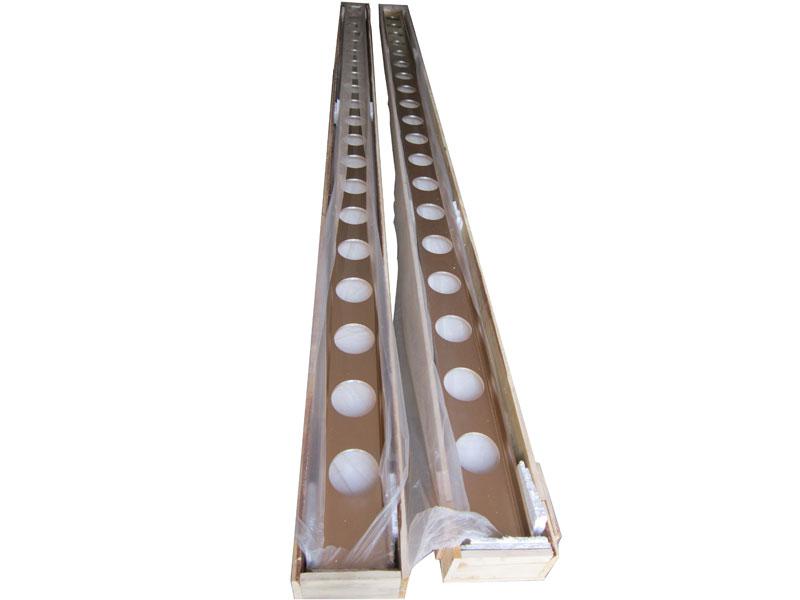

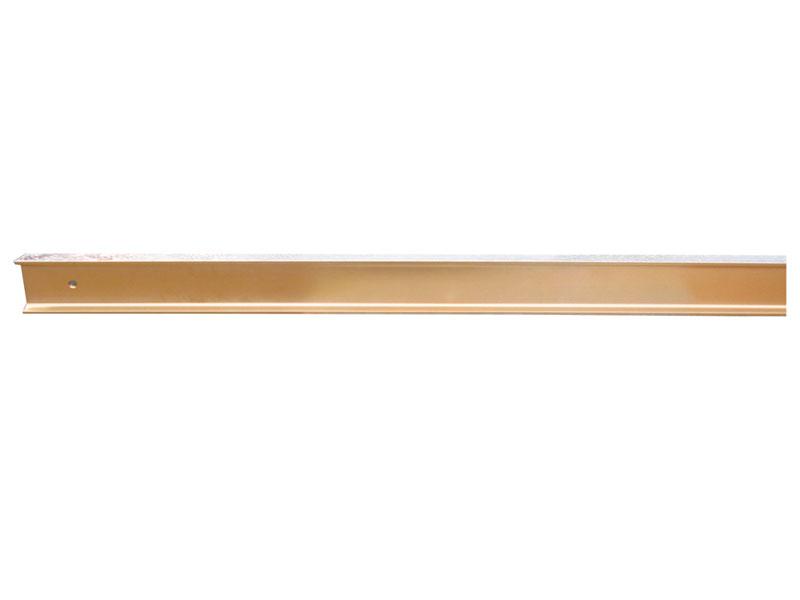

Magnalium Straight Edge

  • Magnalium Straight Edge
  • Magnalium Straight Edge

Our magnalium straight edge comes with high precision, and is convenient to use. It is commonly found in the applications, for instance, inspection, measurement, scribing, equipment installation, and engineering construction.

Features
  • Light Weight
    The precision straight edge of no longer than 2 meters has the average weight of 1.5kg/m, and the one of longer than 2 meters is available with the average weight of 3kg/m. A 6 meters long straight edge only weights 18 kilograms. Therefore, our product even can be conveniently used by one person.
  • Resistance to Deformation
    In general, the common type steel has the yield point of only 30kg/mm2, and the cast iron has the yield point of 38kg/mm2. Dissimilarly, magnalium has the yield point up to 110kg/mm2. For that matter, it is a kind of engineering straight edge extremely excellent in anti-bending and anti-deformation performances.
  • Easy to Keep
    This magnesium alloy straight edge can be hung or laid flat. And its straightness, parallelism will not be affected by the long-term storage.
  • Good Anti-rust Performance
    No oil coating is required during the application period. If the magnalium straight edge is not to be used for a long term, it should be gently coated with the ordinary type industrial oil, and then it can be stored.
Parameters
Size(mm) L 500 1000 1500 2000 2500 3000 3500 4000 5000 5000 6000 6000
H 60 60 60 100 100 100 100 150 150 175 150 175
A 30 30 30 40 40 40 40 80 80 80 80 80
B 6 6 6 8 8 8 8 10 10 10 10 10
R 4 4 4 6 6 6 6 8 8 10 8 10
Precision 0 0 1 1 1 2 2 2 3 2 3 2
Straightness(μm) 0.003 0.005 0.015 0.018 0.022 0.048 0.056 0.064 0.16 0.08 0.20 0.10
Parallelism(μm) 0.004 0.008 0.022 0.027 0.033 0.072 0.084 0.13 0.24 0.12 0.30 0.15
Weight(Kgs) 0.8 1.5 2.3 6 7.5 9 10 28 35 40 42 50
