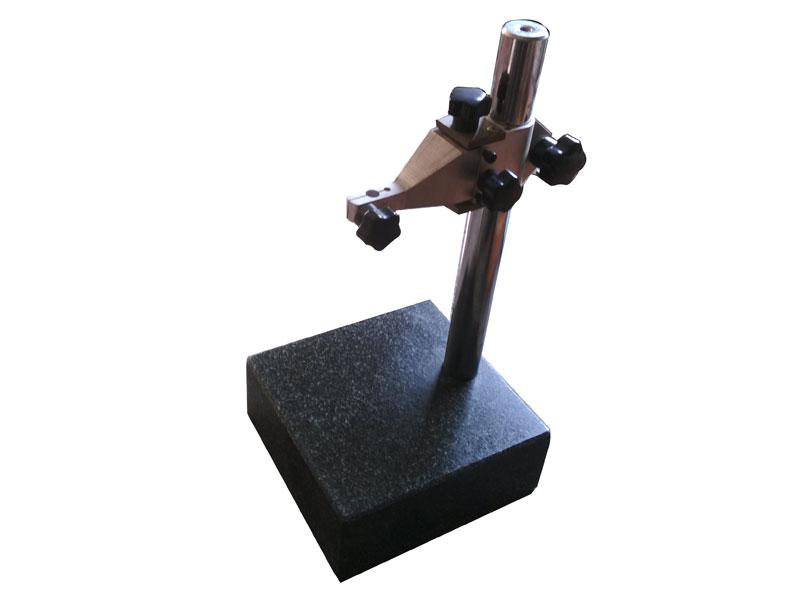

This Granite base dial gauge stand is names as micrometer dial, primarily used to inspect the flatness and depth of parallelism of the cutting tools, precision workpiece, etc. When matched with the dial indicator, electronic probe, it can be used to the relative measurement of the parts or finished product. Please note that we do not supply the dial plate.
Parameters of Granite Base Micrometer DialA × B (mm) | C (mm) | D (mm) | E (mm) |
150 × 150 | 260 | 0 - 200 | 85 |
200 × 150 | 260 | 0 - 200 | 85 |
200 × 200 | 260 | 0 - 200 | 85 |
300 × 200 | 260 | 0 - 200 | 85 |
300 × 300 | 260 | 0 - 200 | 85 |
