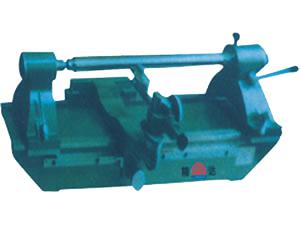

High Precision Bench Center

This product has been discontinued and removed from our shelves.

When connected to the computer, the high precision bench center can more accurately, directly test the relevant data. The application of a pair of Mohs hardness 4# alloy tips together with the gear transmission, has greatly enhanced the measurement precision and increased the weight to support the parts that need testing. Therefore, this bench type testing tool can test the radial, end, or oblique circular runout.

Our horizontal inspection center is convenient to operate. Its dial gauge stand is scientifically designed, and can be freely adjusted as you like. Its excellent rigidity has improved the flexibility of the inspection instrument. In this regard, it is especially suitable for grinding and processing the parts.

1) Radial rotation precision: 0,001mm
2) Depth of parallelism between the side rail and the tip-tip connection line: 0.005mm (I type)
3) Maximum Diameter of the Tested Part: 250mm
4) Maximum Length of the Tested Part: 500mm, 800mm.
