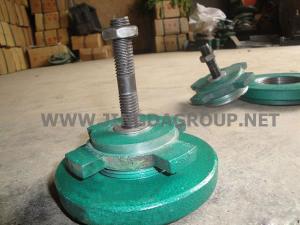

Anti-vibration Mount (Green)

The S78-8 anti-vibration mount manufactured in compliance with the standard of JB/T6607-93, could be fixed or moveable type. It is chiefly used for the support mounting and adjustment level of the machine tool equipment. This elastomer base iron pad could be fixed or movable type.

Features
1. The anti-vibration mount applies the damping rubber to effectively reduce its vibration.
2. It can prevent the vibratory force from getting in while reducing the transmission of vibratory force.
3. Our vibration isolation pad can guarantee the size accuracy and quality of processed product.
4. When applied to the building structure, our machine mount can be used to control the noise and resonance vibratory force. It allows the rough, fine machining machine tools to form a production unit.

Parameters
Type (mm) Bolt (mm) Adjustment Height (mm) Load per Mount (kgs)
φ 80 × 25 M12 × 100 5 500
φ 100 × 25 M12 × 100 8 800
φ 125 × 32 M14 × 110 12 1000
φ 135 × 32 M14 × 110 12 1200
φ 160 × 40 M16 × 120 12 2000
φ 180 × 40 M16 × 120 12 2500
φ 200 × 60 M18 × 120 12 4500
φ 240 × 60 M20 × 160 12 5500
φ 310 × 70 M21 × 160 12 9000
