Anti-vibration Mount (Yellow)

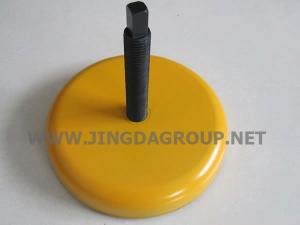

This S78-9 yellow anti-vibration mount which is made in line with the standard of JB/T6607-93, is used for the support installation, horizontal adjustment of the machine tool equipment. Our vibration isolation mount could be fixed or movable type.

Parameters of Iton Anti-vibration Mount
Type (mm) Bolt (mm) Adjustment Height (mm) Load per Mount (kgs)
φ 40 × 15 M5 × 30 5 200
φ 80 × 25 M10 × 80 8 500
φ 120 × 32 M12 × 100 12 900
φ 160 × 35 M16 × 120 12 1300
φ 185 × 40 M20 × 160 12 2000
φ 200 × 55 M22 × 160 12 4200
φ 250 × 60 M24 × 180 12 5000
φ 315 × 70 M30 × 200 12 9500
