Magnetic V-block

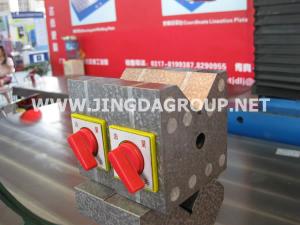

The magnetic V-block is convenient in use. Both of its V groove part and bottom part are magnetic. It is a kind of industrial V-block chiefly fit for the inspection in the cylindrical products processing. It can revise the verticality, concentricity, etc. This inspection block is available with the sizes including 60×60×60mm, 100×60×100mm, and 150×60×120mm. The working magnetic force could be 20 kg×2, 25kg×2, and 30kg×2.

A B H E Magnetic Force(Kg)
60 60 60 30 40
100 60 100 60 50
150 60 120 90 60
Parameters
Size(mm) Flatness of Working Surface Parallelism Between the V Groove and Bottom Surface Parallelism Between the V groove and Side Surface Degree of Symmetry Between V Groove and Two Side Surfaces Verticality Between the V Groove and End Face
Precision Grade(μm)
0 1 2 0 1 2 0 1 2 0 1 2 0 1 2
80×60×75 1.5 2 3 205 6 12 3 6 12 6 12 22 6 6 12
100×60×80 1.5 3 5 4 8 15 4 8 15 8 16 30 8 8 15
150×50×125 4 6 10 20 10 20 20 40
