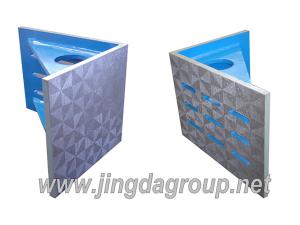

Cast Iron Angle Plate

inquiry form

Application: Cast iron angle plate is used for the parts inspection as well as the clamping in the mechanical processing. Additionally, it is applied to inspect the verticality of the work piece.

Precautions
1. This metal angle plate is not recommended to be used or placed in the humid, corrosive, and too low or high temperature environment.
2. Prior to using, you should firstly install and debug the product, and then wipe its working surface clean. You can't use the cast iron angle bracket until you make sure that it has no problem.

Angle Plate with Holes
Parameters
Type (mm) Perpendicularity Between
Adjacent Measuring
Surface
Flatness and Straightness
of Measuring Surface
Flatness and Straightness
of Datum Surface
Precision Grade (μm)
1 2 3 1 2 3 1 2 3
200 × 200 8 16 30 4 8 16 6 12 24
300 × 200 10 20 40 5 10 20 8 16 30
300 × 300 10 20 40 5 10 20 8 16 30
400 × 300 12 24 45 6 12 24 10 20 40
400 × 400 12 24 45 6 12 24 10 20 40
500 × 400
28 50
14 28
24 48
500 × 500
28 50
14 28
24 48
800 × 600
35 60
18 35
28 55

Remark: We can customize the product of special size.

Related Names
Perforated Angle Iron | Clamping Support | Assembler Tools
