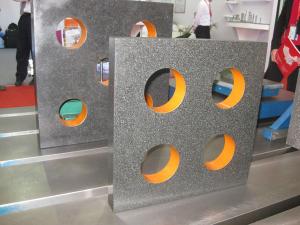

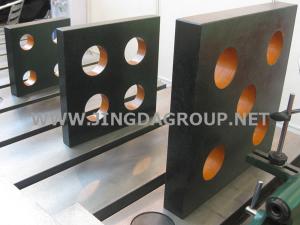

Granite Square Ruler

This granite square ruler is mainly used to test the verticality or degree of parallelism. It is manufactured in accordance with the standard of GB6092-85. We can customize precision granite square rulers of special or large sizes.

Parameters
Type (mm) Squareness between Adjacent Measuring Surfaces Straightness of Measuring
Surface
Parallelism between
Opposite Measuring Surfaces
Precision grade (μm)
00 0 00 0 00 0
160 × 160 2 4 0.8 1.7 2 4
200 × 200 2 4 0.9 1.8 2 4
250 × 250 2.2 4.5 1 2 2.2 4.5
300 × 300 2.6 5.2 1.1 2.3 2.6 5.5
400 × 400 3 6 1.3 2.6 3 6
500 × 500 3.5 7 1.5 3 3.5 7
