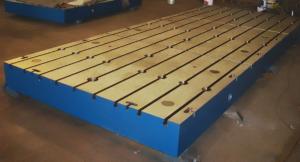

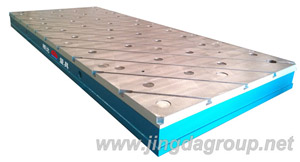

Cast Iron T Slotted Surface Plate

The cast iron T slotted surface plate is a industrial measuring tool mainly used to secure workpiece. Bench workers utilize it for debugging, installing, and maintaining the equipment. This kind of workpiece measuring plate could be manufactured with the precision grade 1, 2, 3, or fine machining. Upon request, it can be made into the rib plate or box type in appearance, and its working surface could be rectangle, square, or round. Additionally, the working surface has been treated with the scraping technology, which allows it to have the V, T, or U-shaped grooves, round holes, slot holes, or others that you desire.

Materials and Processing
The raw material of the cast iron surface table is the high-strength cast iron HT200-300 whose surface hardness is of HB170-240. After the two manual handling such as 600℃ to 700℃ artificial annealing as well as 2 to 3 years of natural aging, the T slot base plate perfectly resists abrasion and has stable precision.

Specification
Standard Size Range: 100mm*100mm-3000mm*8000mm
We can make other sizes on the basis of your actual conditions

Application
Motor assembly test, Vibration test, Rail locomotives installation, Ship fitting, and more.

Parameters
Type(mm) Precision Grade(μm)
1 2 3 Final machining
1200×1000 20 39 96
1500×1000 24 48 120
1500×1500 25 50 125
2000×1000 26 52 129
2000×1500
56 140
2000×2000
60 152 230
2500×1500
64 152 230
2500×2000
68 168 248
2500×2500
72 180 270
3000×1000

168 248
3000×1500

174 254
3000×2000

184 275
3000×2500

186 276
3000×3000

210 300
4000×1000

210 300
4000×1500

210 300
4000×2000

219 310
4000×2500

228 340
4000×3000

240 360
5000×1500

249 370
5000×2000

255 375
5000×2500

264 390
5000×3000

287 420
6000×1500

287 420
6000×2000

293 430
6000×2500

300 450
6000×3000

308 460
8000×1500

366 500
8000×2000

370 520
8000×2500

375 530
8000×3000

382 570
